| Features | HO/HB series | FM series | Turboscope |
|---|---|---|---|
|

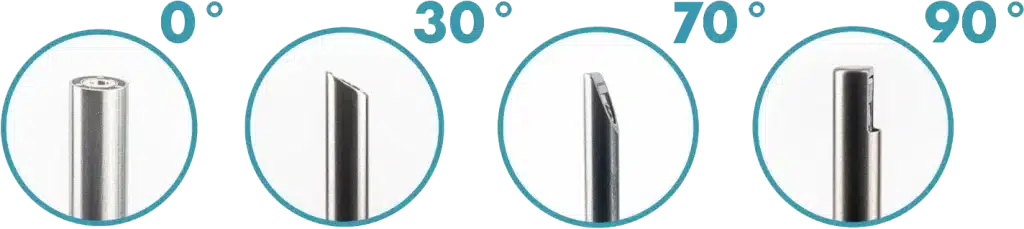

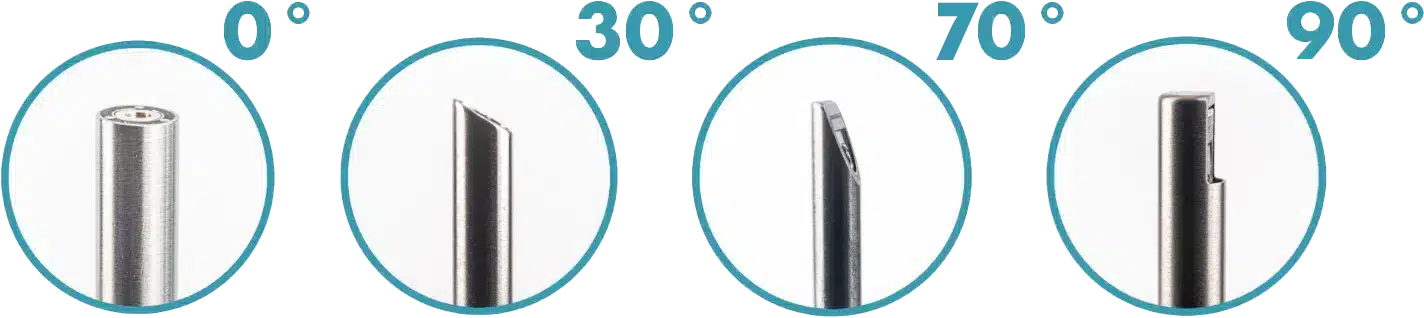

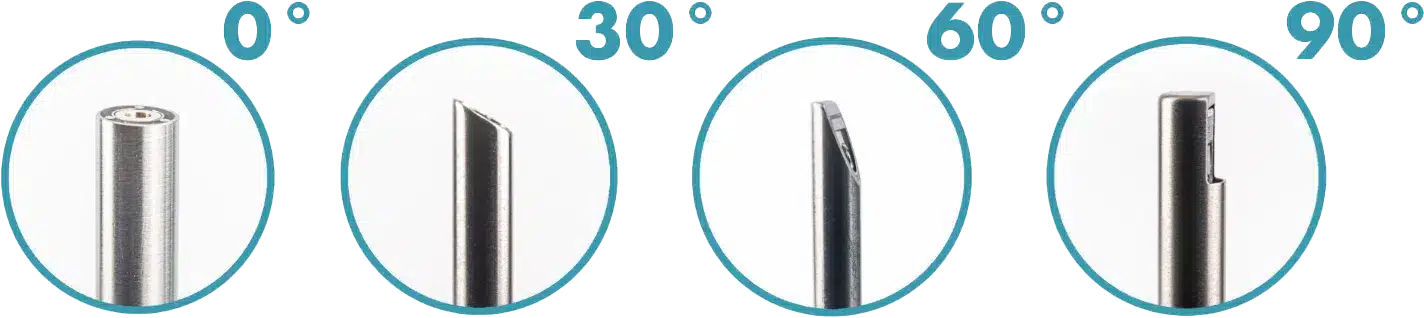

Viewing directions |
0°/30°/70°/90° |
0°/30°/70°/90° |
0°/30°/70°/90° (rotatable shank possible from dia. 1.6mm !NEW!) |
|
Diameter |
2.8 mm – 10.0 mm |
1.6 mm – 4.8 mm |
1.9 mm – 4.8 mm |
|
Length |
115 mm – 1440 mm |
70 mm – 656 mm |
95 mm – 650 mm |
|
Rotatable shaft |
350° rotatable |
Not applicable (standard design of the endoscope) |
306° rotatable |
|
Material and durability |
Stainless steel, sapphire crystal |
Stainless steel, sapphire crystal |
Stainless steel quick-release system, sapphire crystal |
|
Optical system |
High-resolution glass components made in Germany |
High-resolution (from dia 1.6mm high-resolution glass components) |
High-resolution (from dia. 1.6mm; newly calculated optical system exclusively for Hipp; high-resolution glass components made in Germany) |
|
Temperature range |
-10°C to +100°C |
-10°C to +100°C |
-20°C to +100°C |
|
Protection class |
IP67/IP65 |
IP67/IP65 |
IP67/IP65 |
|
Compatibility |
Compatible with existing systems |
Simple integration (compatible with existing Systems) |
High compatibility (compatible with the connections, dimensions and handling, appearance of existing systems) |
|
Weight and stability |
Not specified |
Not specified |
Low weight, increased stability |
|
Different types of portfolio |
Standard variants |
Standard variants |
More than 60 types; 160 variants ; Large portfolio is constantly being expanded |
Find the model you want – Fill out the contact form
Find the rigid endoscope that’s exactly right for your application in just a few steps. Our product finder guides you through diameter, length, viewing direction, and probes—you can request your desired endoscope right away.
Find desired model – Fill out contact form
In just a few steps, find the rigid endoscope that’s exactly right for your application. Our product finder guides you through diameter, length, viewing direction, and probes — you can request your desired endoscope right away.
Flexible integration with adapters, cameras & light sources
Our rigid endoscopes offer a complete inspection solution that can be combined with TC adapters, camera heads and various consoles such as tablets, notebooks or monitors. For optimum illumination, we offer stationary light sources and battery-operated hand-held light guides. These flexible systems enable precise inspections and efficient image transmission in any environment.
Our rigid endoscopes are designed for seamless compatibility – from the camera to the light source. All accessories are coordinated with each other and can be integrated into your existing system without adapters.
The Turboskop is designed for seamless compatibility – from the camera to the light source. All accessories are matched to each other and can be integrated into your existing system without an adapter.
Contact Form – Get a Quote in 24 Hours!
Find the right endoscope in just a few steps and request a quote right away. Our product finder will guide you through diameter, length, and application—our team of experts will get back to you shortly with a personalized quote.
Frequently asked questions – Rigid endoscopes
Rigid endoscopes offer numerous advantages for industrial inspection tasks. They provide high-resolution images that enable precise and detailed inspections. They are particularly indispensable in industries such as the automotive, aerospace and medical technology sectors. The robust design ensures a long service life and resistance in demanding environments. They are also easy to operate and clean, making them quick to use. By using rigid endoscopes, inspection times can be shortened and production costs reduced, resulting in greater efficiency and productivity.
Rigid endoscopes are used in numerous industries as they enable precise and detailed inspections:
Yes, our endoscopes are compatible with existing systems and can be easily integrated into existing equipment. The connections and dimensions are aligned with common industry standards, which makes handling and customization easier.
Our endoscopes offer different viewing directions, including 0°, 30°, 70° and 90°. From a diameter of 1.6 mm, a rotatable shaft is also possible, which enables an even more precise and flexible inspection – an exclusive innovation in the industry.
Our endoscopes are made of high-quality materials such as stainless steel and sapphire glass, which are known for their durability and resistance. These materials ensure high durability and prevent damage, even under demanding operating conditions.
Industrial rigid endoscopes are characterized by their high durability. They are made from high-quality materials such as stainless steel and sapphire glass and therefore offer a long service life. Many models are also certified to IP67/IP65 standards, which means that they are dust and waterproof and can therefore be used in harsh industrial environments.
